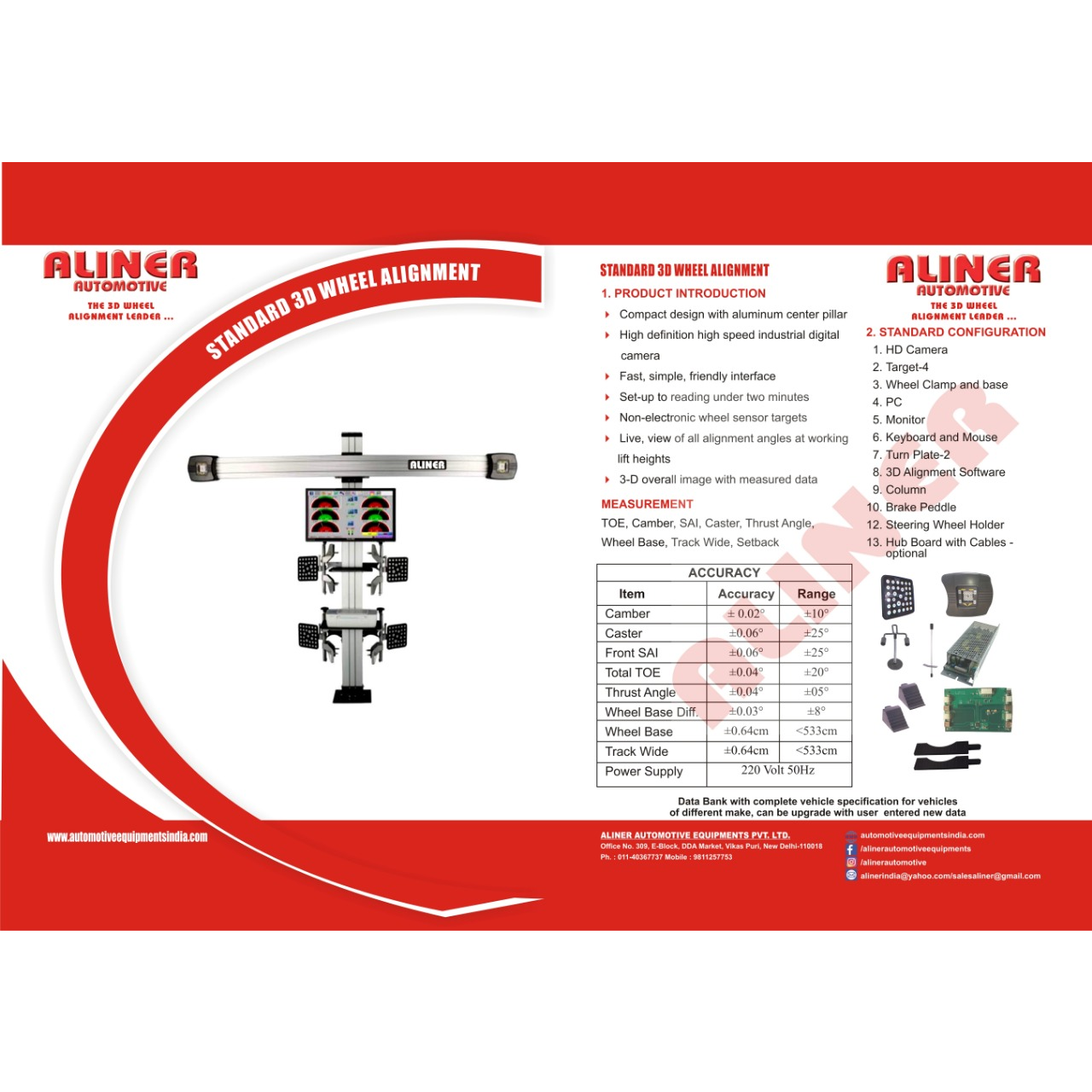

3D STANDARD WHEEL ALIGNMENT MACHINE
MODEL : STANDARD
3D Wheel aligner is stable, accurate, low cost, and easy to maintain 2
camera wheel alignment system. Specially designed for clients who need to
expand their business with high performance equipment. This product has
outstanding & unique feature and the most advanced technology to ensure
the growth of your company fame.
Professional:
Dual HD Camera's system, Dual core CPU computer system, Waterproof targets,
24 inch clamps, Calibration free, Upto 120 cm lifting range, Auto lift platform
compensation, Auto vehicle compensation, Super large vehicle database.
Stable:
Reinforce structure of lateral beam to ensure accuracy in different temperature
Durable:
Unbreakable Waterproof targets, Long life high-speed camera system
Affordable:
Camera interchangeable
Free vehicle database update twice a year
Calibration Free:
Calibration of the 3D Wheel Alignment System was done in the factory, doesn't
need on-site calibration on installation. This outstanding feature saves a lot of
work and make installation of the equipments super easy.
Standard Configuration:-
Wheel Adaptor Holder - 4 No.s
Camera Crossbeam with Power Supply Cables and 2 USB Cables - 1 No.
SMPS - 1 No.
Target - 4 No.s ( Size 9 x 9 Inch )
Wheel Clamp - 4 No.s
Hub Board with Cables
CPU - 1 No.
18.5" LCD - 1 No.
Keyboard and Mouse- 1 No.
Turn Table - 2 No.s (Laser Cut MS)
Wheel Choke - 2 No.s
ROC Rubber Plate - 4 No.s
Brake Paddle Depressor - 1 No.
Steering Wheel Holder - 1 No.
Anchoring Bolts - 4 Nos.
3D Alignment Software
Aluminium Column
32" LCD Optional
3D Alignment Software
Wooden Packing - 2 Boxes Net Weight - 119 Kgs, Gross Weight - 190 Kgs
Size Box 1. : 1510 x 780 x 710 (MM)
Size Box 2 : 2840 x 300 x 390 (MM)
