Products

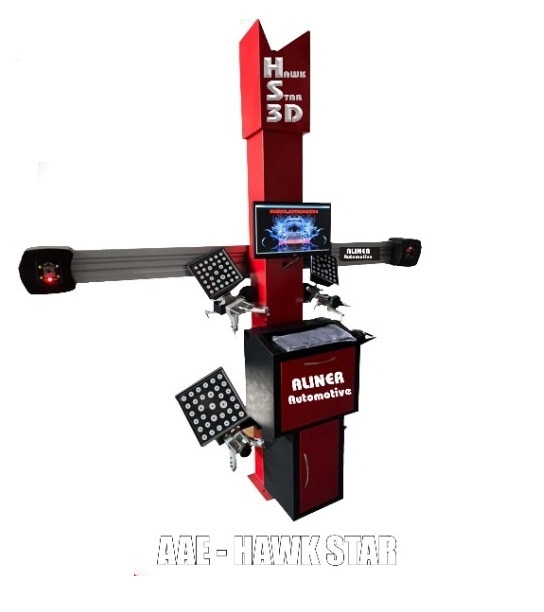

3D Wheel aligner is stable, accurate, low cost, and easy to maintain 2 camera wheel alignment system. Specially designed for clients who need to expand their business with high performance equipment. This product has outstanding & unique feature and the most advanced technology to ensure the growth of your company fame. Professional: Dual HD camera system, Dual core CPU computer system, Waterproof targets, 24 inch clamps, Calibration free, Upto 120 cm lifting range, Auto lift platform compensation, Auto vehicle compensation, Super large vehicle database. Stable: Reinforce structure of lateral beam to ensure accuracy in different temperature Durable: Unbreakable Waterproof targets, Long life high-speed camera system Affordable: Camera interchangeable Free vehicle database update twice a year Calibration Free: Calibration of the 3D Wheel Alignment System was done in the factory, doesn't need on-site calibration on installation. This outstanding feature saves a lot of work and make installation of the equipments super easy. Standard Configuration: Wheel Adaptor Holder - 4 No.s Camera Crossbeam with Power Supply Cables and 2 USB Cables - 1 No. SMPS - 1 No. Targets - 4 No.s Wheel Clamp - 4 No.s Hub Board with Cables CPU - 1 No. 18.5" LCD - 1 No. Key Board & Mouse - 1 No. Up and Down Manual Movable MS Column - 1 No. with workable trolley Turn Plate - 2 No.s (Laser Cut MS) ROC Rubber Plates - 4 No.s Wheel Choke - 2 Nos. Brake Paddle Depressor - 1 No. Steering Wheel Holder - 1 No. Anchoring Bolts - 3 Nos. 3D Alignment Software

SINGLE PISTON JACK

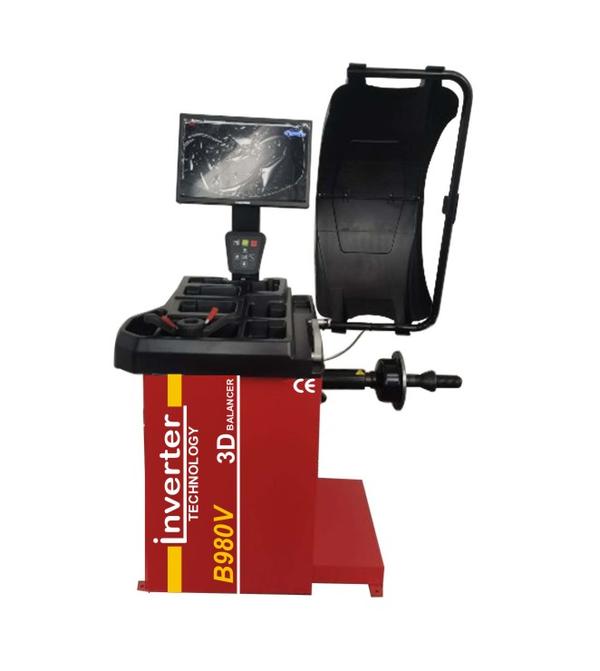

Technical Specification Max. Tire Dia. 1000 mm Rim Dia.10”-24” Rim Width 4”-16” Spinning Speed 200 R.P.M Max. Tire Weight 70 KG Balancing Accuracy +/-1 G Power Supply 220V/50HZ/1PH Motor Power 0.25KW Spins and brakes the wheel automatically. At the end of the cycle, the wheel is brought to the balancing weight application position (RPA). The whole process is managed via new inverter technology that ensures better spin speed control for improved measuring stability. TECHNICAL FEATURES Electronic microprocessor controlled wheel balancer for balancing car, motorcycle and light industrial vehicle wheels. Control panel with digital display and durable key buttons. Automatic distance, diameter and width data entry. Automatic start by lowering wheel guard. Automatic braking of the wheel after measurement. Wheel locking with Quick nut. Self-calibration and self-diagnosis programs. Wheel dimensions shown in inches or millimeters. Indication of unbalance in grams or ounces. Alu programs and motorcycle programs. Optimization mode for rim/tyre matching. Hidden weight program.

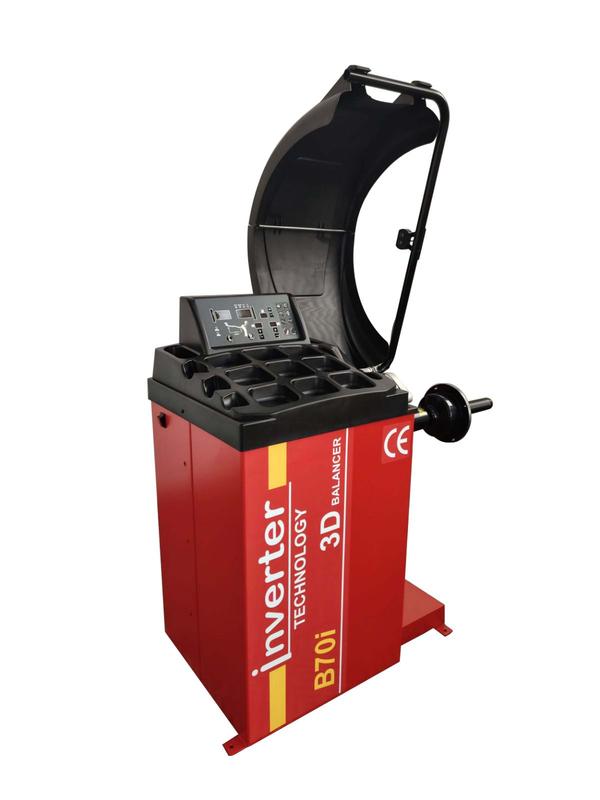

3D DIGITAL WHEEL BALANCER (WITH INVERTER TECHNOLOGY) Technical Specification Max. Tire Dia. 1000 mm Rim Dia.10”-24” Rim Width 4”-16” Spinning Speed 200 R.P.M Max. Tire Weight 70 KG Balancing Accuracy +/-1 G Power Supply 220V/50HZ/1PH Motor Power 0.25KW Spins and brakes the wheel automatically. At the end of the cycle, the wheel is brought to the balancing weight application position (RPA). The whole process is managed via new inverter technology that ensures better spin speed control for improved measuring stability. TECHNICAL FEATURES Electronic microprocessor controlled wheel balancer for balancing car, motorcycle and light industrial vehicle wheels. Control panel with digital display and durable key buttons. Automatic distance, diameter and width data entry. Automatic start by lowering wheel guard. Automatic braking of the wheel after measurement. Wheel locking with Quick nut. Self-calibration and self-diagnosis programs. Wheel dimensions shown in inches or millimeters. Indication of unbalance in grams or ounces. Alu programs and motorcycle programs. Optimization mode for rim/tyre matching. Hidden weight program.

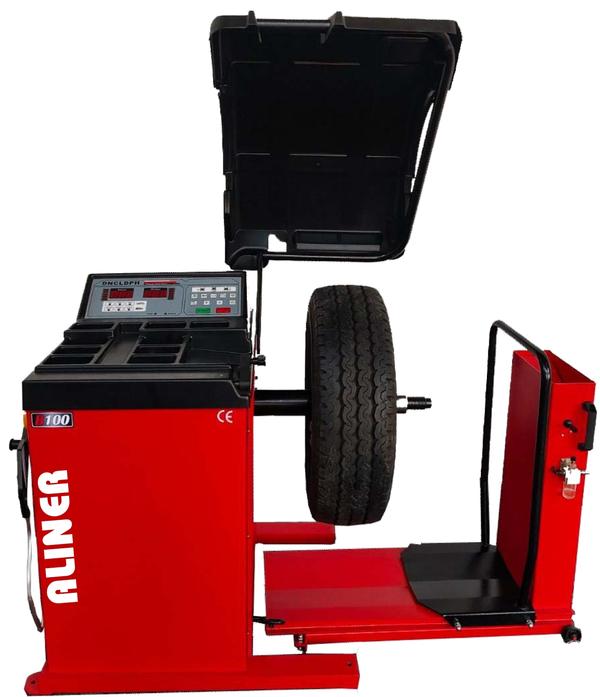

Voltage 220V/50 Hz Power 0.55Kw Balancer cycle 10s Balance speed 180rpm Balance precision ±10gm Max wheel diameter 1200mm Rim diameter 10-28* Rim width 3-20" Net weight/Gross weight 200Kg/233kg Machine size 1630mmx800mmx1270mm Packing size 1230mmx970x1210mm

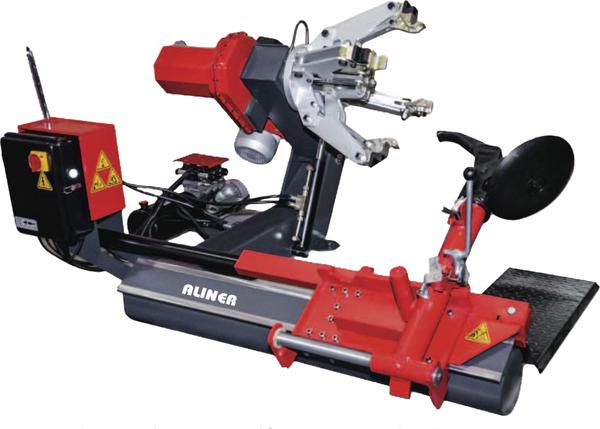

Technical Specification Rim diameter 14”-26” Max wheel weight 500kg Max. wheel width 780mm Hydraulic pump motor 1.5kw, 380v-3hp Gearbox motor 2.2kw, 380v-3hp Bead Breaker force 2500kg Max. Torque 6457N.m Operation control voltage 24v Machine weight 517kg approx. Overall dimension 2500mmx2000mm approx. Power 400V 50Hz 3ph } } } } } Automatic Tyre Changer. Clockwise & Anticlockwise rotation of chuck. Locking Jaws with different Gripping possibilities. Hydraulic motor with pressure regulating devise. Italian pump,

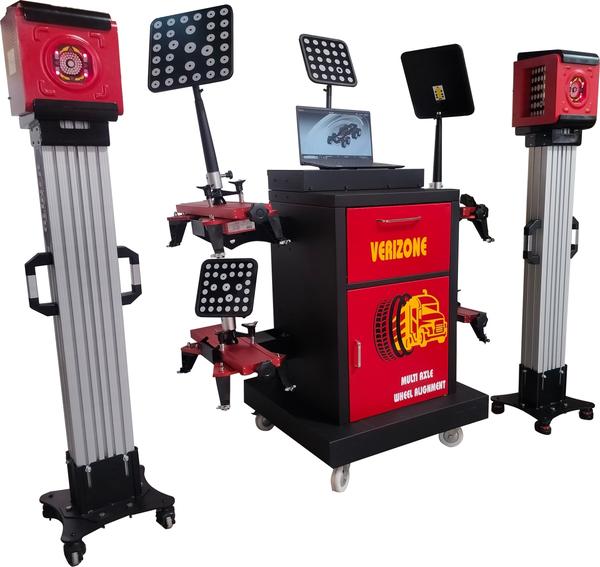

MULTI AXLE WHEEL ALIGNMENT MACHINE First Wireless System Provides Flexible Calibration Free Installation VERIZONE TRUCK AND BUS MOBILE ALIGNER SPECIFICATION Number of camera 2 Camera type 2x8MPix machine vision High Definition Cameras Installation type Floor-mount mobile type Console type U-series Applicability Lift or Pit Wheel clamp mounting range 15 - 28 inch Power source 220 AC single-phase 50 Hz Two adjustment baselines are supported references to the frame or vehicle centerline. The adjustment procedure with the baseline references to the vehicle frame defines a centerline through the center of the frame. The rear axle thrust angle, the scrub angle of the subsequent axles, and the total toe-in of the front axle are adjusted relative to the selected baseline. THE SOFTWARE / THE POWERFUL AND RELIABLE ALIGNER CONTROL PANEL This machine installed with individual battery pack for low power consumption, high speed, signal. WIDESCOPЕ Unique 3 camera WideScope technology allows readings and angles adjustments over an extensive range of lengths without adjusting the gauge system's height, which enables working with an extended range of wheelbases without loss of accuracy and significantly increasing the productivity of a wheel alignment bay. WHEEL ADAPTORS & TARGETS Lightweight and compact design of adaptors and targets. Self-centering 15” - 28” rim range wheel adaptors with an adjustable central carriage are compatible with most heavy-duty vehicles. Double-sided extended heavy-duty studs for easy attachment to both steel and light-alloy rims. High definition targets are coated with a protective layer and contain no electronic components. A super-light FR 4 alloy target base is used. Target corner plastic frame for outstanding protection against drops and other impacts. Constructed from impact-resistant polycarbonate and double-enforced with a shock-absorbing rubber inner sleeve. CAMERA ASSEMBLY BLOCK High-definition cameras for immediate and stable target capture and a high-speed image transfer over TCP/IP. The system software carries out the wheels' spatial-position definition based on the reflection of target images. Each block comprises RGB auxiliary indicators of alignment procedure status. Colored backlight for the mobile version or backlight board indication for the stationary model with a convenient indication for the duplication of the screen directions to facilitate measurement and adjustment procedures. PROBE TARGET A mechanical or electronic laser probe accurately calculates the frame position relative to a truck or semi-trailer axle. This option allows the alignment procedure to be carried out almost as quickly as quickly as the measurement relative to the vehicle centerline.

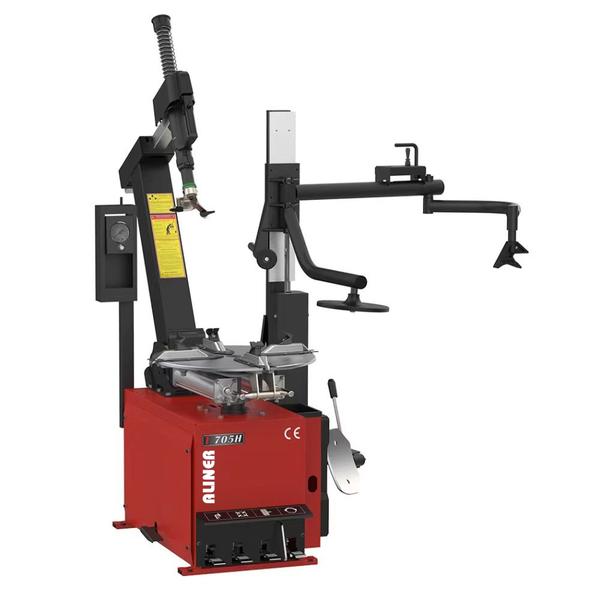

Technical Specification Outer Clamping Size 12”-24” Inner Clamping Size 10”-22” Max. Wheel Dia. 1040mm Max. Wheel Width 3”-15” Beadbreaking Force 2700 KG Operating Pressure 8-10BAR Power Supply 220V/50HZ/1PH Motor Power 1.5KW Technical Features Ø Automatic tyre changer with pneumatic tilt-back tower. Ø Robust 041mm hexagon shaft. Ø Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position. Ø Tools head with interchangeable plastic inserts for rim protection. Ø Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions. Ø Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types. Ø Powerful clamping cylinders provide uniform clamping pressure. Ø Clockwise and anticlockwise rotation of the turntable through electric motor. Ø The pedal assembly can be removed allowing easy servicing. Ø Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard. Ø Independent tire inflation bay with inflation tube, pressure gauge and pressure release button. Ø Complete with lubrication filter and pressure regulator. DP20 HELPER ARM : Ø Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres. Ø Rim pressing cone for assisting wheel clamping. Ø Tyre Lifting disk to aid in demounting difficult tyre and wheel combinations. Ø Mid position roller helps loosening of the second bead.

3D Wheel aligner is stable, accurate, low cost, and easy to maintain 2 camera wheel alignment system. Specially designed for clients who need to expand their business with high performance equipment. This product has outstanding & unique feature and the most advanced technology to ensure the growth of your company fame. Professional: Dual HD camera system, Dual core CPU computer system, Waterproof targets, 24 inch clamps, Calibration free, Upto 120 cm lifting range, Auto lift platform compensation, Auto vehicle compensation, Super large vehicle database. Stable: Reinforce structure of lateral beam to ensure accuracy in different temperature Durable: Unbreakable Waterproof targets, Long life high-speed camera system Affordable: Camera interchangeable Free vehicle database update twice a year Calibration Free: Calibration of the 3D Wheel Alignment System was done in the factory, doesn't need on-site calibration on installation. This outstanding feature saves a lot of work and make installation of the equipments super easy. Standard Configuration: Wheel Adaptor Holder - 4 No.s Camera Crossbeam with Power Supply Cables and 2 USB Cables - 1 No. SMPS - 1 No. Targets - 4 No.s Wheel Clamp - 4 No.s Hub Board with Cables CPU - 1 No. 18.5" LCD - 1 No. Key Board & Mouse - 1 No. Up and Down Manual Movable MS Column - 1 No. with workable trolley Turn Plate - 2 No.s (Laser Cut MS) ROC Rubber Plates - 4 No.s Wheel Choke - 2 Nos. Brake Paddle Depressor - 1 No. Steering Wheel Holder - 1 No. Anchoring Bolts - 3 Nos. 3D Alignment Software

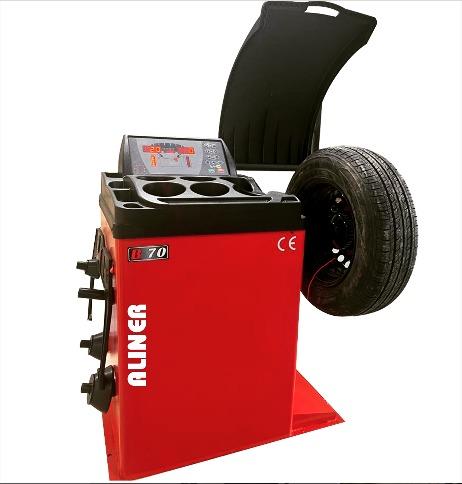

Technical Specification Max. Tire Dia. 1000 mm Rim Dia. 10”-28”. Rim Width 1.5”-20” Spinning Speed 200 R.P.M Max. Tire Weight 70 KG Balancing Accuracy +/-16 Power Supply 220V/50HZ/1PM Motor Power 0.25KW Technical Features Manual measuring of wheel diameter and distance. Various programs selectable Static, Alu1, Alu2, Alu3 etc. Spin unit with 36mm balancing shaft and anti-rust alu-alloy belt pulley ensures Maximum reliability. Precise Alu-alloy distance gauge with weight holder ensures more accurate measurement. Integrated calibrate and self-diagnostic program. Auto or manual start when hood is lowered. Selection of millimetre/inch and ounce/gram.
