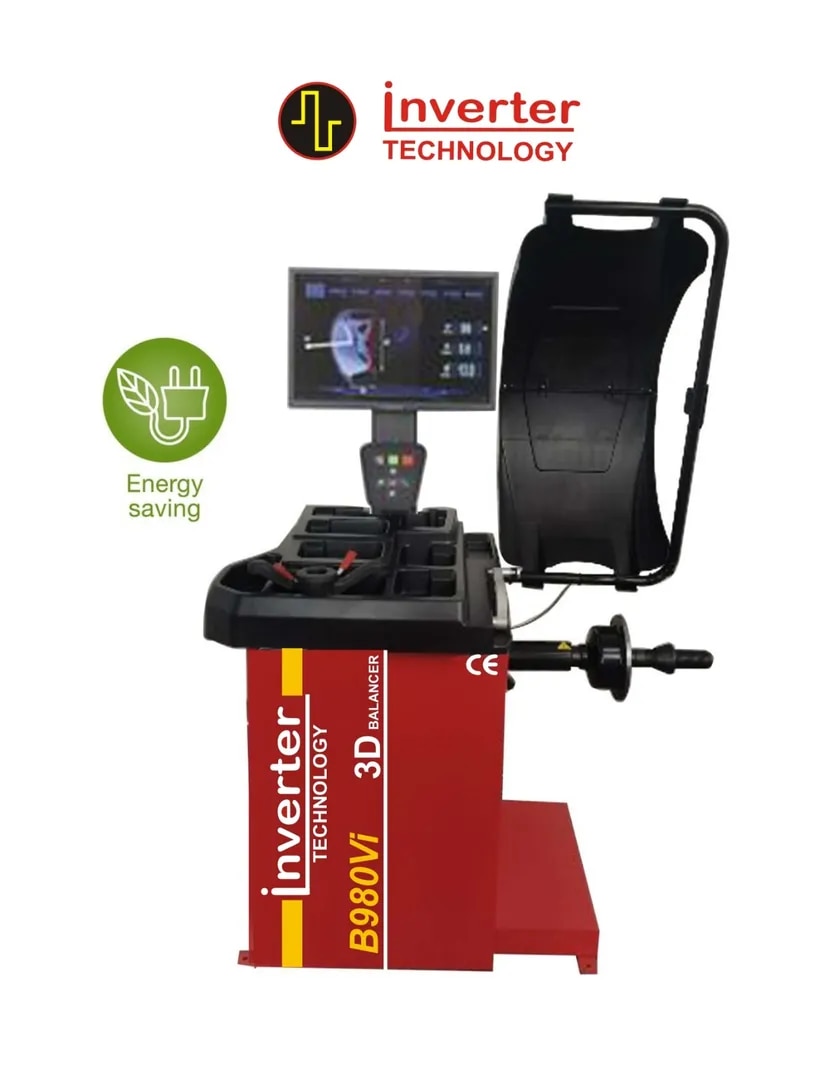

VIDEOGRAPHIC WHEEL BALANCER (INVERTER TECHNOLOGY)

Technical Specification

Max. Tire Dia. 1000 mm

Rim Dia.10”-24”

Rim Width 4”-16”

Spinning Speed 200 R.P.M

Max. Tire Weight 70 KG

Balancing Accuracy +/-1 G

Power Supply 220V/50HZ/1PH

Motor Power 0.25KW

Spins and brakes the wheel

automatically. At the end of the

cycle, the wheel is brought to

the balancing weight

application position (RPA). The

whole process is managed via

new inverter technology that

ensures better spin speed

control for improved

measuring stability.

TECHNICAL FEATURES

Electronic microprocessor controlled wheel balancer for balancing

car, motorcycle and light industrial vehicle wheels.

Control panel with digital display and durable key buttons.

Automatic distance, diameter and width data entry.

Automatic start by lowering wheel guard.

Automatic braking of the wheel after measurement.

Wheel locking with Quick nut.

Self-calibration and self-diagnosis programs.

Wheel dimensions shown in inches or millimeters.

Indication of unbalance in grams or ounces.

Alu programs and motorcycle programs.

Optimization mode for rim/tyre matching.

Hidden weight program.
