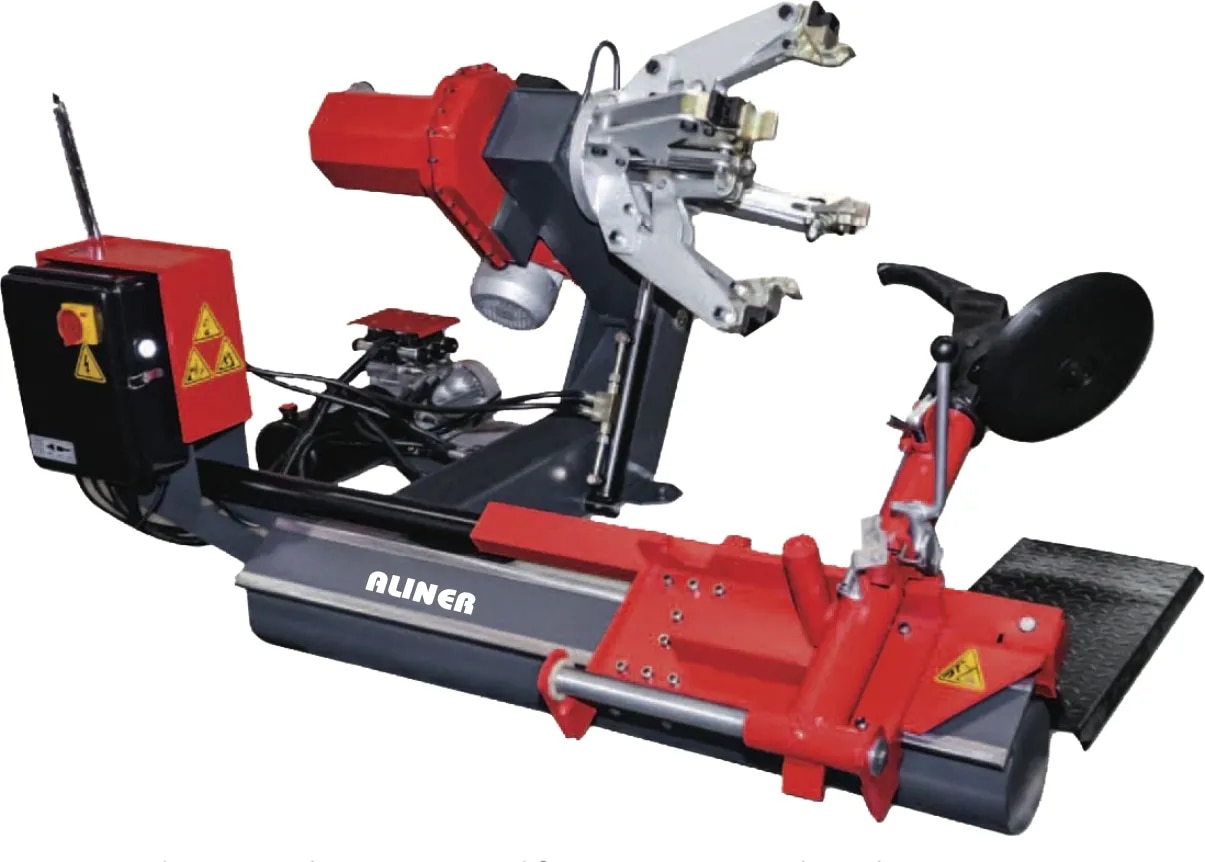

TYRE CHANGER FOR TRUCK AND BUSES

Technical Specification

Rim diameter 14”-26”

Max wheel weight 500kg

Max. wheel width 780mm

Hydraulic pump motor 1.5kw, 380v-3hp

Gearbox motor 2.2kw, 380v-3hp

Bead Breaker force 2500kg

Max. Torque 6457N.m

Operation control voltage 24v

Machine weight 517kg approx.

Overall dimension 2500mmx2000mm approx.

Power 400V 50Hz 3ph

}

}

}

}

}

Automatic Tyre Changer.

Clockwise & Anticlockwise rotation of chuck.

Locking Jaws with different Gripping possibilities.

Hydraulic motor with pressure regulating devise.

Italian pump,
