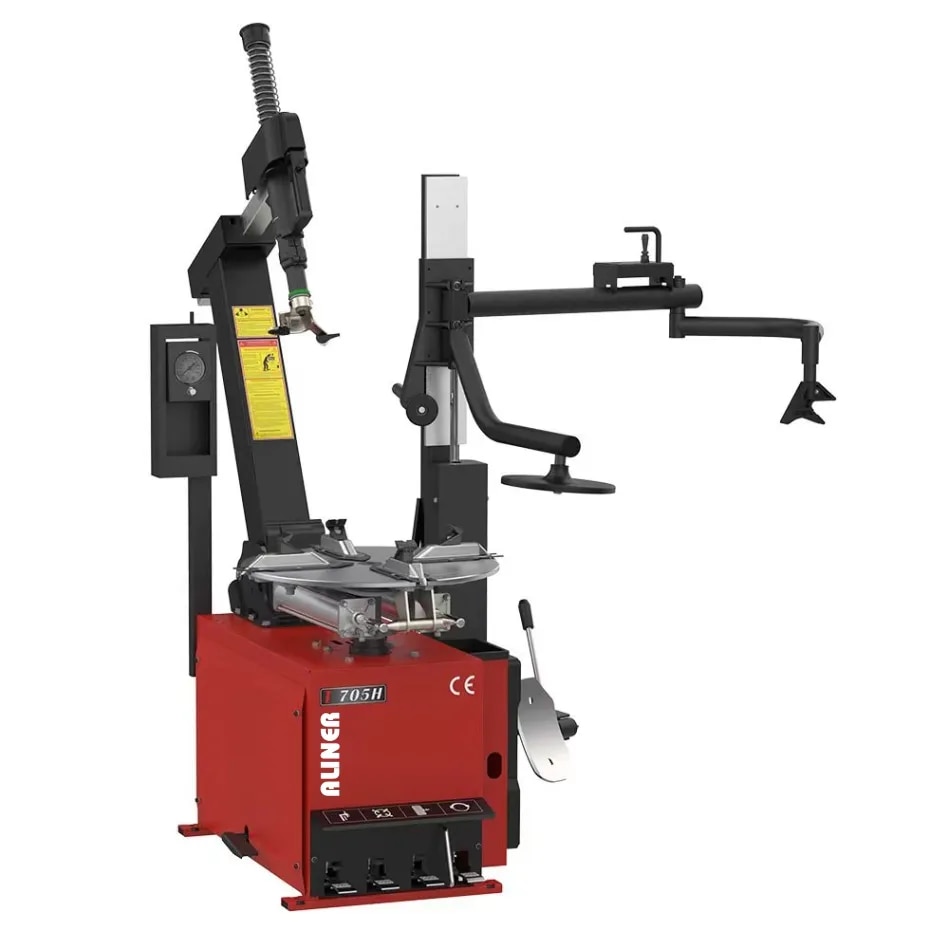

Tilt Back Tire Changer Machine

Technical Specification

Outer Clamping Size 12”-24”

Inner Clamping Size 10”-22”

Max. Wheel Dia. 1040mm

Max. Wheel Width 3”-15”

Beadbreaking Force 2700 KG

Operating Pressure 8-10BAR

Power Supply 220V/50HZ/1PH

Motor Power 1.5KW

Technical Features

Ø Automatic tyre changer with pneumatic tilt-back tower.

Ø Robust 041mm hexagon shaft.

Ø Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.

Ø Tools head with interchangeable plastic inserts for rim protection.

Ø Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.

Ø Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.

Ø Powerful clamping cylinders provide uniform clamping pressure.

Ø Clockwise and anticlockwise rotation of the turntable through electric motor.

Ø The pedal assembly can be removed allowing easy servicing.

Ø Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.

Ø Independent tire inflation bay with inflation tube, pressure gauge and pressure release button.

Ø Complete with lubrication filter and pressure regulator.

DP20 HELPER ARM :

Ø Rotating arm with bead pressing head for drop-center rims, to assist fitting and

removal of tyres, particularly low profile tyres.

Ø Rim pressing cone for assisting wheel clamping.

Ø Tyre Lifting disk to aid in demounting difficult tyre and wheel combinations.

Ø Mid position roller helps loosening of the second bead.
