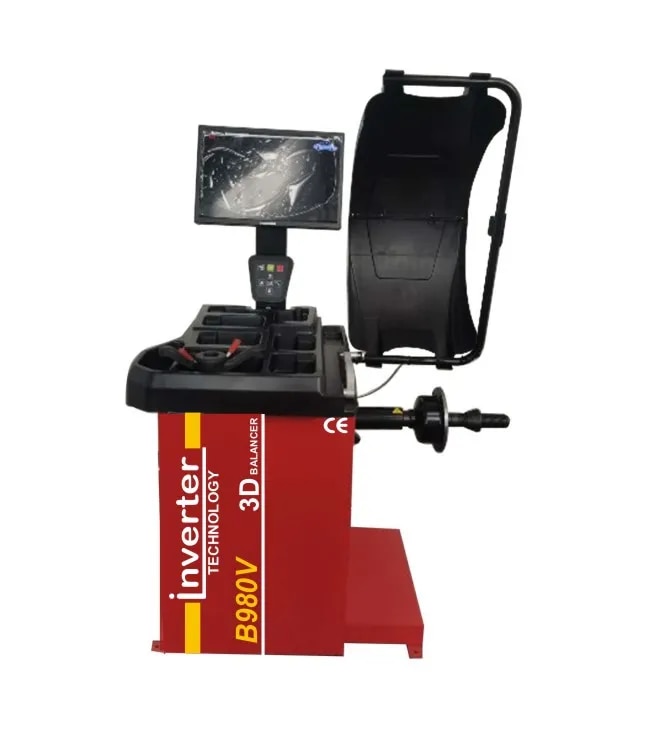

VIDEOGRAPHIC 3D WHEEL BALANCER WITH SONAR SENSOR WITH INVERTER TECHNOLOGY

VIDEOGRAPHIC 3D WHEEL BALANCER WITH SONAR SENSOR WITH INVERTER TECHNOLOGY

Technical Specification

Max. Tire Dia. 1000 mm

Rim Dia. 10”-24”.

Rim Width 1.5”-16”

Spinning Speed 200 R.P.M

Max. Tire Weight 70 KG

Balancing Accuracy +/-16

Power Supply 220V/50HZ/1PM

Motor Power 0.25KW

Technical Features

Ø Electronic microprocessor controlled wheel balancer for balancing car,

motorcycle and light industrial vehicle wheels.

Ø Control panel with backlit graphic LCD display and durable key buttons.

Ø Automatic distance, diameter and width data entry.

Ø Automatic start by lowering wheel guard.

Ø Automatic braking of the wheel after measurement.

Ø Wheel locking with quickfit out.

Ø Self - calibration and self diagnosis programs.

Ø Wheel dimensions shown in inches or ounces.

Ø Indication of unbalance in grams or ounces.

Ø Alu programs and motorcycle programs.

Ø Optimization mode for rim/tyre matching.

Ø Hidden weight program.
