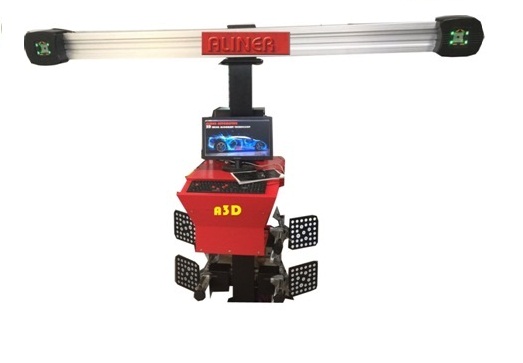

3D WHEEL ALIGNMENT MACHINE Model : Passion |
| 3D Wheel aligner is stable, accurate, low cost, and easy to maintain 2 |
| camera wheel alignment system. Specially designed for clients who need to |
| expand their business with high performance equipment. This product has |
| outstanding & unique feature and the most advanced technology to ensure |
| the growth of your company fame. |
| Professional: |
| Dual HD camera system, Dual core CPU computer system, Waterproof targets, |
| 24 inch clamps, Calibration free, Upto 120 cm lifting range, Auto lift platform |
| compensation, Auto vehicle compensation, Super large vehicle database. |
| Stable: |
| Reinforce structure of lateral beam to ensure accuracy in different temperature |
| Durable: |
| Unbreakable Waterproof targets, Long life high-speed camera system |
| Affordable: |
| Camera interchangeable |
| Free vehicle database update twice a year |
| Calibration Free: |
| Calibration of the 3D Wheel Alignment System was done in the factory, doesn't |
| need on-site calibration on installation. This outstanding feature saves a lot of |
| work and make installation of the equipments super easy. |
| Standard Configuration: |
| Wheel Adaptor Holder - 4 No.s |
| Camera Crossbeam with Power Supply Cables and 2 USB Cables - 1 No. |
| SMPS - 1 No. |
| Targets - 4 No.s |
| Wheel Clamp - 4 No.s |
| Hub Board with Cables |
| CPU - 1 No. |
| 18.5" LCD - 1 No. |
| Key Board & Mouse - 1 No. |
| Up and Down Manual Movable MS Column - 1 No. with workable trolley |
| Turn Plate - 2 No.s (Laser Cut MS) |
| ROC Rubber Plates - 4 No.s |
| Wheel Choke - 2 Nos. |
| Brake Paddle Depressor - 1 No. |
| Steering Wheel Holder - 1 No. |
| Anchoring Bolts - 3 Nos. |
| 3D Alignment Software |
| Wooden Packing - 2 Boxes Net Weight - 119 Kgs, Gross Weight - 190 Kgs |
| Size Box 1. : 1510 x 780 x 710 (MM) |
Size Box 2 : 2840 x 300 x 390 (MM) |
