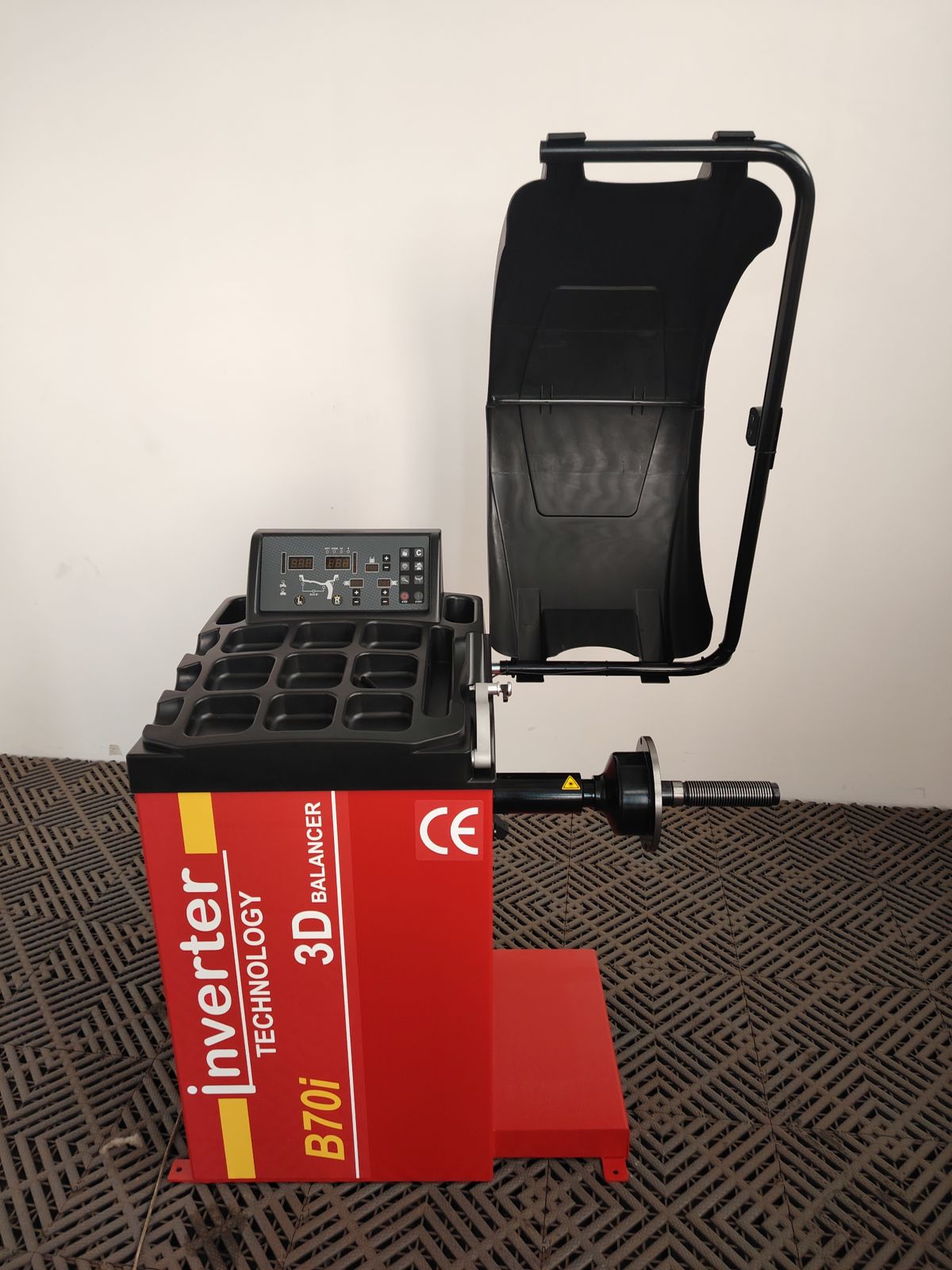

3D WHEEL BALANCER WITH SONAR SENSOR (INVERTER TECHNOLOGY)
Technical Specification
All Automatic Mesurement A/D/H Automatic Input
Laser Indication at 6° O Clock Position
Automatic Tracing and locking at the unbalancing position.
Digital motor driving optimized automatically bidirectional locating and fixing point
function simple to use
Automatic Braking
Automatic Weight Position
Max. Tire Dia. 1000 mm
Rim Dia. 10”-24”.
Rim Width 4”-16”
Spinning Speed 200 R.P.M
Max. Tire Weight 70 KG
Balancing Accuracy +/-1 G
Power Supply 220V/50HZ/1PH
Motor Power 0.25KW
40 mm high precision balancing shaft
Technical Features
Ø Electronic microprocessor controlled wheel balancer for balancing car,
motorcycle and light industrial vehicle wheels.
Ø Control panel with backlit graphic Digital display and durable key buttons.
Ø Automatic distance, diameter and width data entry.
Ø Automatic start by lowering wheel guard.
Ø Automatic braking of the wheel after measurement.
Ø Wheel locking with quickfit out.
Ø Self - calibration and self diagnosis programs.
Ø Wheel dimensions shown in inches or ounces.
Ø Indication of unbalance in grams or ounces.
Ø Alu programs and motorcycle programs.
Ø Optimization mode for rim/tyre matching.
Ø Hidden weight program.
