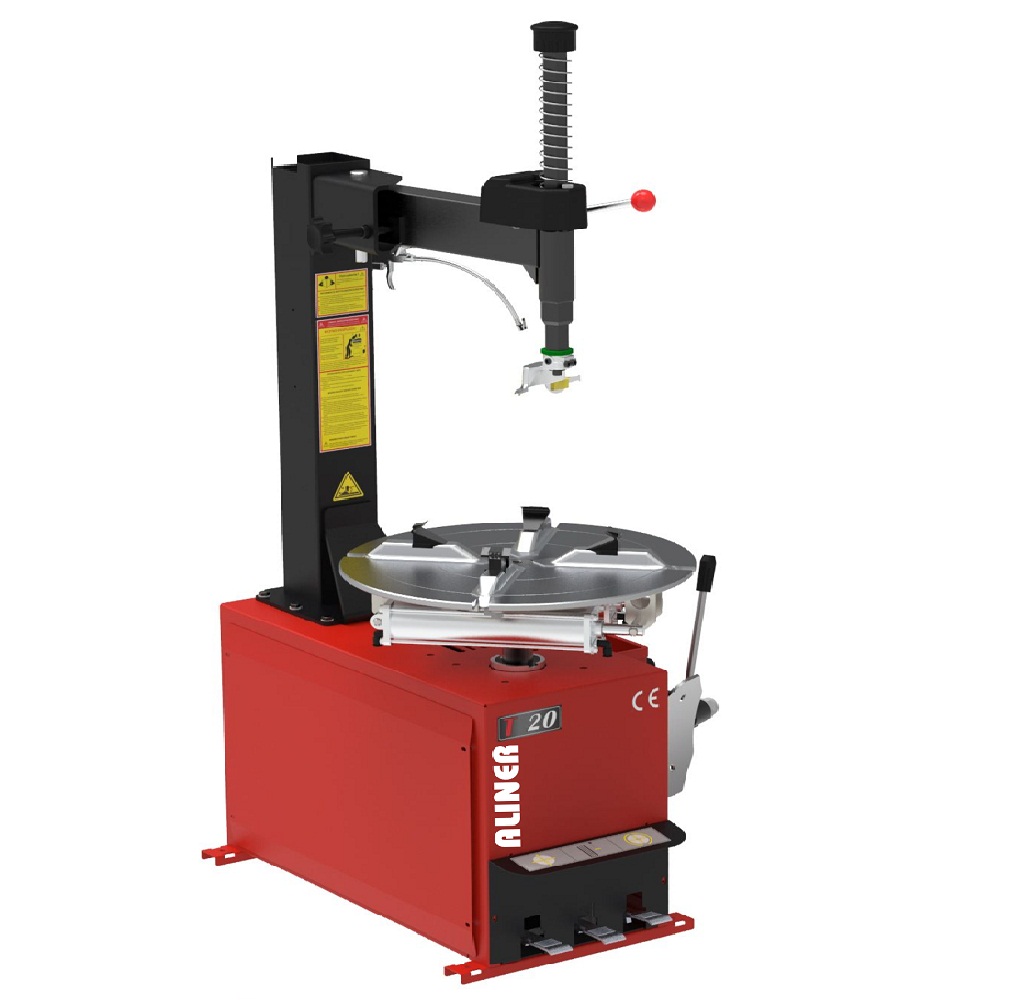

| Tyre Changer swinging arm |
| Self Centring Assymetric 4 Jaw Chuck |
| High Power Bead Breaker |
| Twin Cylinder |
| Heavy Duty Turntable |
| Suitable for Alloy Rims |
| Bead Breaker : 2700Kg |
| Motor Power : 1.1kW, 220v, 50Hz |
| Max Tyre Width : 15" |
| Outside Clamping : 12"-22" |
| Inside Clamping : 10"-20" |
| Machine Weight : 200Kg |
| Inflation Gun and Guage |
|
| Technical Features |
| Ø Swing horizontal arm with 36 mm hexagon shaft. |
| Ø Mechanical locking and vertical adjustment of mounting arm. |
| Ø Tools head with interchangeable plastic inserts for rim protection. |
| Ø Self-centering four-jaws with double pneumatic cylinder for secure |
| clamping of all rim types. |
| Ø Powerful clamping cylinders provide uniform clamping pressure. |
| Ø Clockwise and Anticlockwise rotation of the turn table through electric |
| motor. |
| Ø The pedal assembly can be removed allowing easy servicing. |
| Ø Inflation gun with pressure gauge and pressure release button |
| Ø Protection kit for bead breaker shoe, demounting head and clamping |
| jaw comes standard. |
| Ø Complete with lubrication filter and pressure regulator. |
