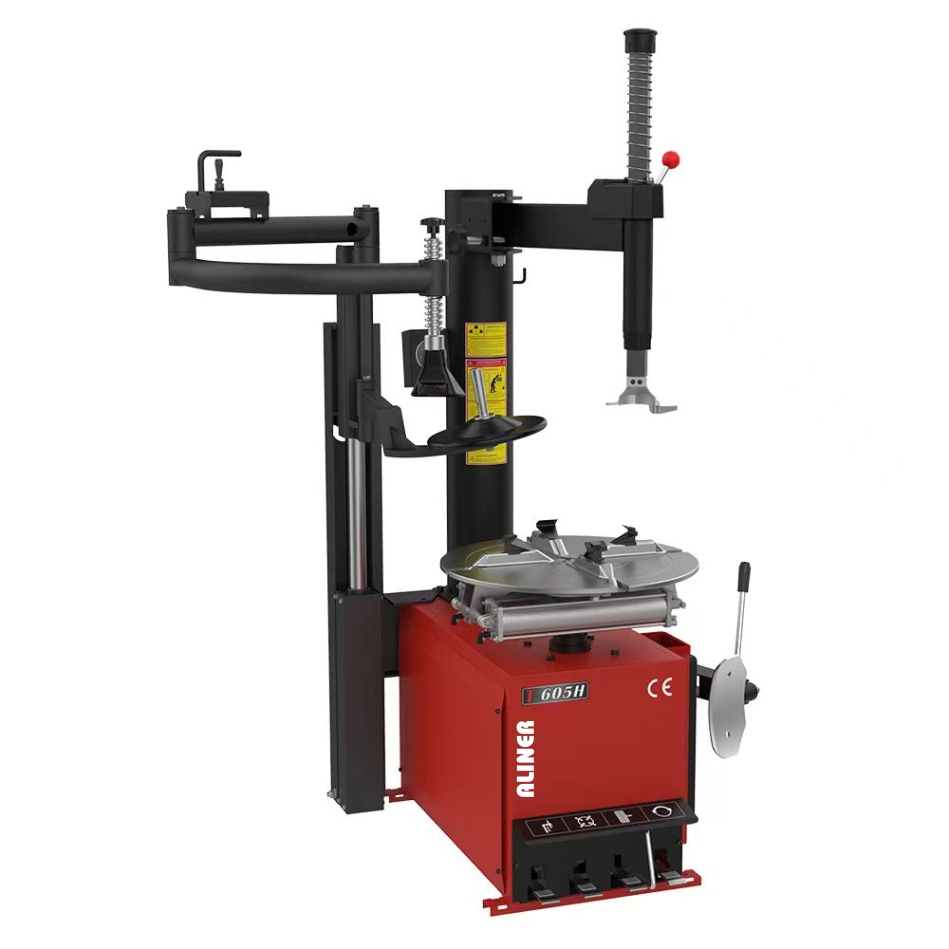

Rft Tyre Changer Machine
| Technical Specification |
| Outer Clamping Size 12”-24” |
| Inner Clamping Size 10”-22” |
| Max. Wheel Dia. 1040mm |
| Max. Wheel Width 3”~15” |
| Beadbreaking Force 2700 KG |
| Operating Pressure 8-10 BAR |
| Power Supply 220V/50HZ/1PH |
| Motor Power 1.1 KW |
| |
| Technical Features |
| Ø Swing horizontal arm with 041 mm hexagon shaft. |
| Ø Cylindrical vertical tower featuring high torsional rigidity. |
| Ø Mechanical locking and vertical adjustment of mounting arm. |
| Ø Tools head with interchangeable plastic inserts for rim protection. |
| Ø Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types. |
| ØPowerful clamping cylinders provide uniform clamping pressure. |
| Ø Clockwise and anticlockwise rotation of the turntable through electric motor. |
| ØThe pedal assembly can be removed allowing easy servicing. |
| Ø Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button. |
| Ø Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard. |
| Ø Complete with lubrication filter and pressure regulator. |
| PX30 HELPER ARM : |
| Ø Rotating arm with bead pressing head for drop-center rims, to assist fitting and |
| removal of tyres, particularly low profile tyres. |
| Ø Tyre Lifting disk to aid in demounting difficult tyre and wheel combinations. |
|
