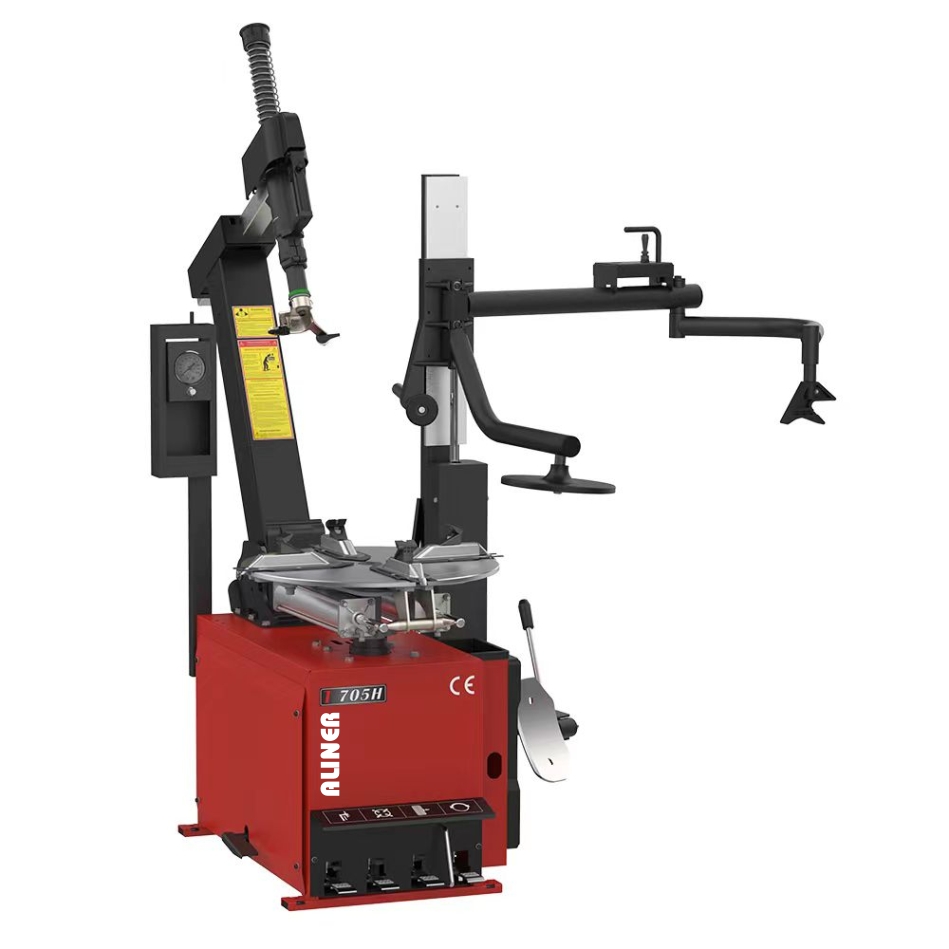

Tilt Back Tire Changer Machine Technical Specification |
| Outer Clamping Size 12”-24” |
| Inner Clamping Size 10”-22” |
| Max. Wheel Dia. 1040mm |
| Max. Wheel Width 3”-15” |
| Beadbreaking Force 2700 KG |
| Operating Pressure 8-10BAR |
| Power Supply 220V/50HZ/1PH |
| Motor Power 1.5KW |
| |
| |
| |
| Technical Features |
| Ø Automatic tyre changer with pneumatic tilt-back tower. |
| Ø Robust 041mm hexagon shaft. |
| Ø Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position. |
| Ø Tools head with interchangeable plastic inserts for rim protection. |
| Ø Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions. |
| Ø Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types. |
| Ø Powerful clamping cylinders provide uniform clamping pressure. |
| Ø Clockwise and anticlockwise rotation of the turntable through electric motor. |
| Ø The pedal assembly can be removed allowing easy servicing. |
| Ø Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard. |
| Ø Independent tire inflation bay with inflation tube, pressure gauge and pressure release button. |
| Ø Complete with lubrication filter and pressure regulator. |
| |
| DP20 HELPER ARM : |
| Ø Rotating arm with bead pressing head for drop-center rims, to assist fitting and |
| removal of tyres, particularly low profile tyres. |
| Ø Rim pressing cone for assisting wheel clamping. |
| Ø Tyre Lifting disk to aid in demounting difficult tyre and wheel combinations. |
| Ø Mid position roller helps loosening of the second bead. |
