TYRE CHANGER MACHINE 10" TO 24"
#TIRECHANGER #TYRECHANGER #RFTTYRECHANGER #TILTBACKTYRECHANGER

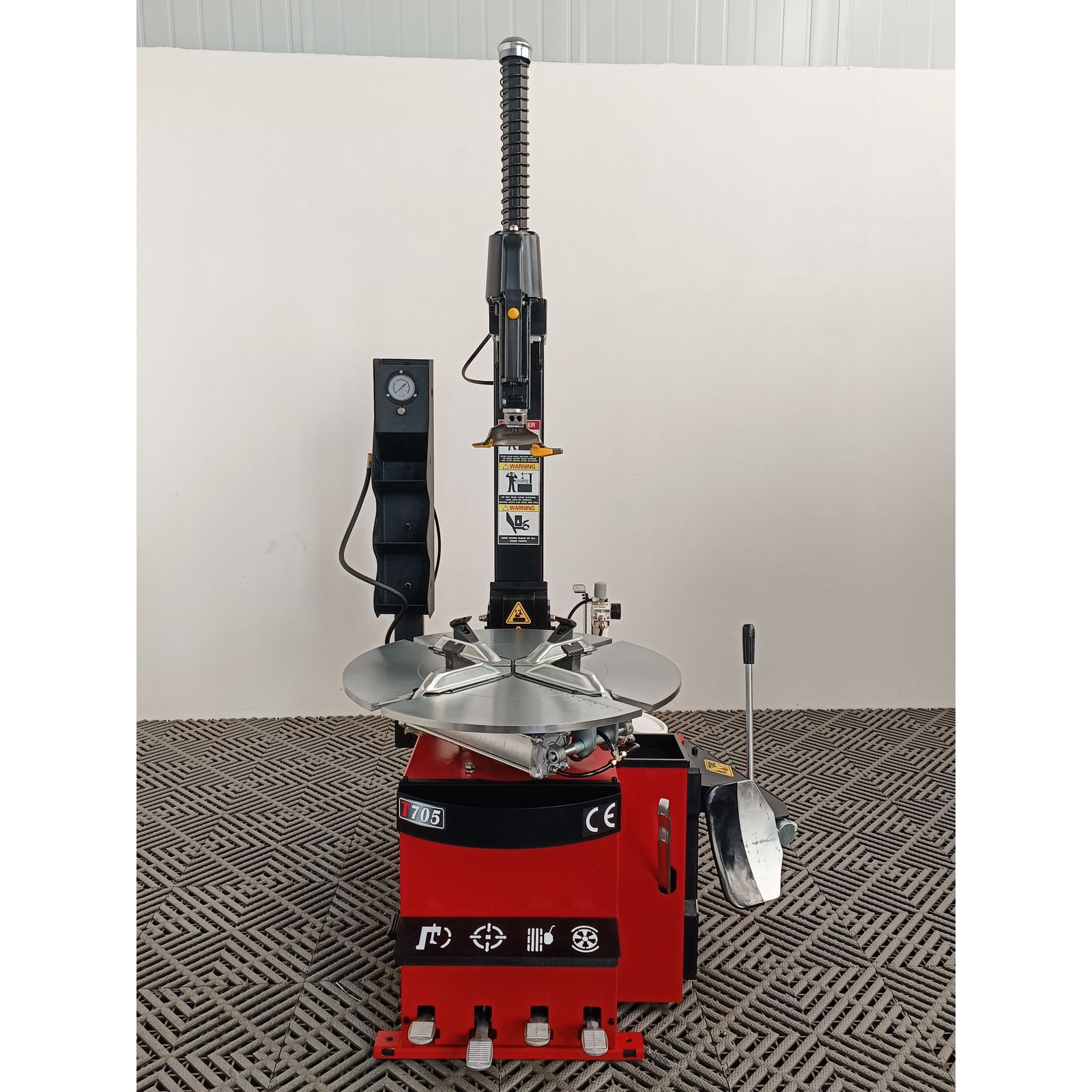

TYRE CHANGER WITH TILT BACK COLUMN
Technical Specification
Outer Clamping Size 12”-24”
Inner Clamping Size 10”-22”
Max. Wheel Dia. 1040mm
Max. Wheel Width 3”-15”
Beadbreaking Force 2700 KG
Operating Pressure 8-10BAR
Power Supply 220V/50HZ/1PH
Motor Power 1.5KW
Technical Features
Ø Automatic tyre changer with pneumatic tilt-back tower.
Ø Robust 041mm hexagon shaft.
Ø Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.
Ø Tools head with interchangeable plastic inserts for rim protection.
Ø Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.
Ø Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
Ø Powerful clamping cylinders provide uniform clamping pressure.
Ø Clockwise and anticlockwise rotation of the turntable through electric motor.
Ø The pedal assembly can be removed allowing easy servicing.
Ø Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.
Ø Independent tire inflation bay with inflation tube, pressure gauge and pressure release button.
Ø Complete with lubrication filter and pressure regulator.
