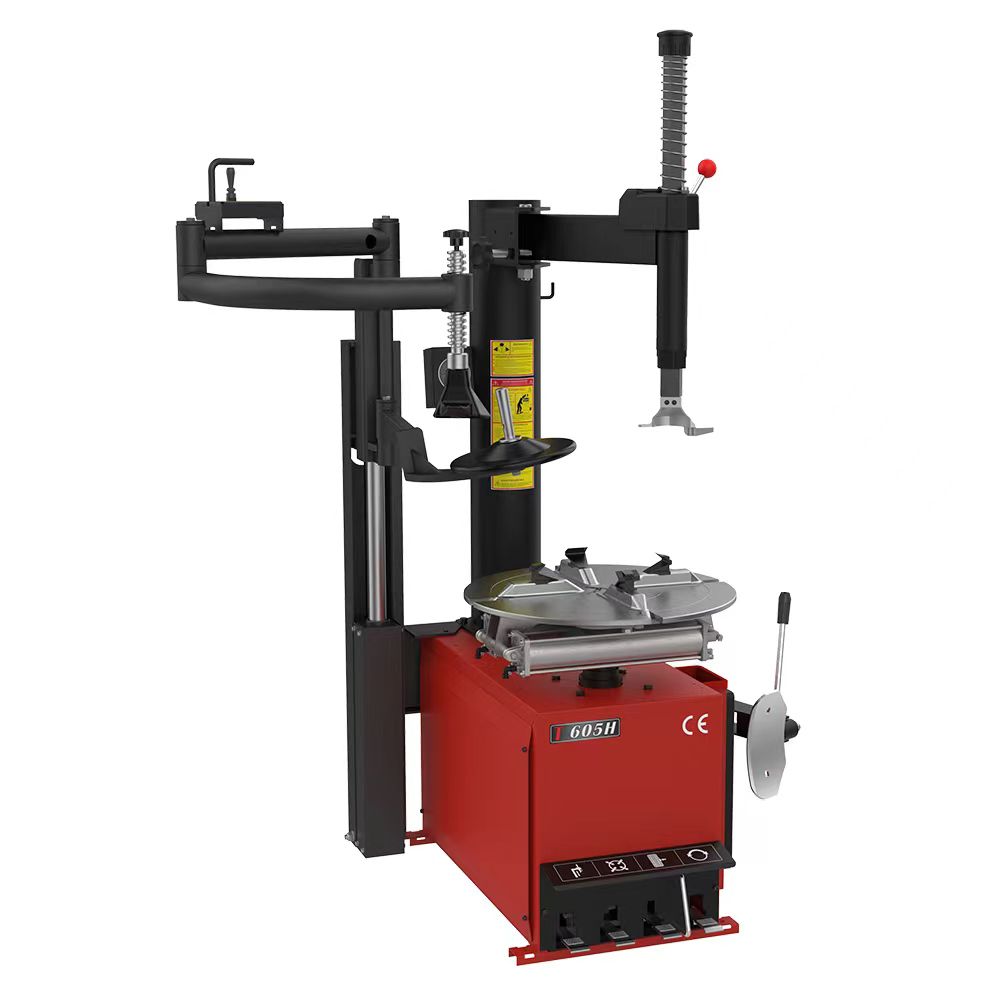

#TYRECHANGER
MODEL : T605H
Technical Specification
Outer Clamping Size 12”-24”
Inner Clamping Size 10”-22”
Max. Wheel Dia. 1040mm
Max. Wheel Width 3”~15”
Beadbreaking Force 2700 KG
Operating Pressure 8-10 BAR
Power Supply 220V/50HZ/1PH
Motor Power 1.1 KW
Technical Features
Ø Swing horizontal arm with 041 mm hexagon shaft.
Ø Cylindrical vertical tower featuring high torsional rigidity.
Ø Mechanical locking and vertical adjustment of mounting arm.
Ø Tools head with interchangeable plastic inserts for rim protection.
Ø Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
ØPowerful clamping cylinders provide uniform clamping pressure.
Ø Clockwise and anticlockwise rotation of the turntable through electric motor.
ØThe pedal assembly can be removed allowing easy servicing.
Ø Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button.
Ø Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.
Ø Complete with lubrication filter and pressure regulator.
PX30 HELPER ARM :
Ø Rotating arm with bead pressing head for drop-center rims, to assist fitting and
removal of tyres, particularly low profile tyres.
Ø Tyre Lifting disk to aid in demounting difficult tyre and wheel combinations.
