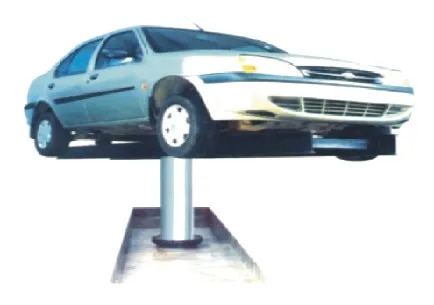

Fully Hydraulic Washing Lift

Fully Hydraulic Washing Lift

Aliner Automotive is one of the leaders in hydraulic washing hoist. Our lifts can be used for washing and lubrication of all types of passenger & commercial vehicles.

High grade steel plungers manufactured to close tolerance with hard chrome plating for high wear resistant.

Gland rings used in the plungers to increase performance. Wiper rings to present entry of water and dirt particles into the hoist cylinder while raising, servicing and lowering.

Model Name: POWER 004T

Capacity : 4 Ton

No. of post : 1 (Made by Jindal Steel)

Plunger diameter: 270mm

Operating pressure: 9 to 12 ks/cm²

Lifting height : 1500 mm.

Ramp Length: 14 ft

Oil Tank : 5 mm

Oil Tank Dish : 6 mm

Ramp Width : 750mm

Oil fill tank capacity: 170 Ltrs
