Description
Product details

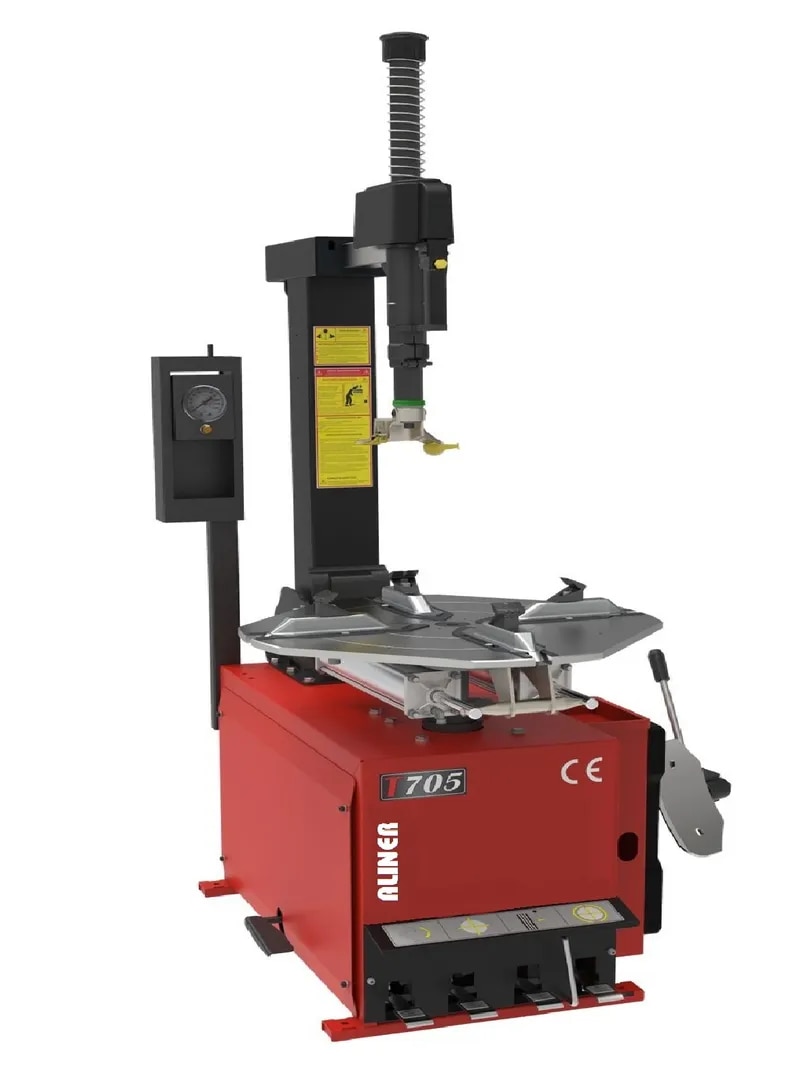

Technical Specification : Outer Clamping Size 12”-24” Inner Clamping Size 10”-22” Max. Wheel Dia. 1040mm Max. Wheel Width 3”-15” Beadbreaking Force 2700 KG Operating Pressure 8-10BAR Power Supply 220V/50HZ/1PH Motor Power 1.5KW Technical Features : Automatic tyre changer with pneumatic tilt-back tower. Robust 041mm hexagon shaft. Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position. Tools head with interchangeable plastic inserts for rim protection. Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions. Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types. Powerful clamping cylinders provide uniform clamping pressure. Clockwise and anticlockwise rotation of the turntable through electric motor. The pedal assembly can be removed allowing easy servicing. Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard. Independent tire inflation bay with inflation tube, pressure gauge and pressure release button. Complete with lubrication filter and pressure regulator.
