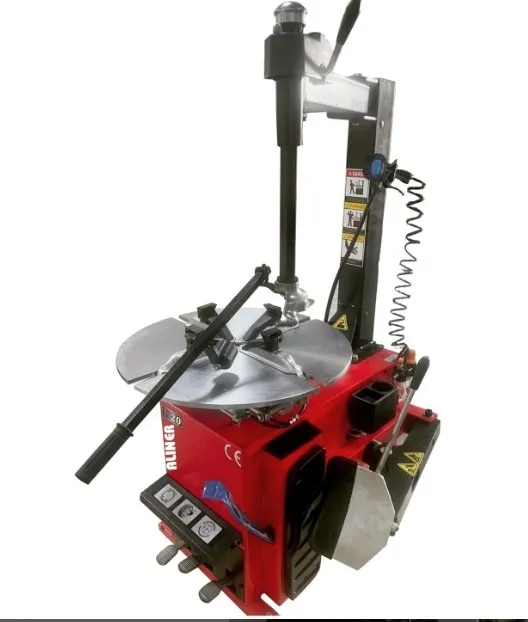

TYRE CHANGER ( 10" to 22" ) With Pressing Tool

Automatic Tyre Changer

Tyre Changer swinging arm

Self Centring Assymetric 4 Jaw Chuck

High Power Bead Breaker

Twin Cylinder

Heavy Duty Turntable

Suitable for Alloy Rims

Bead Breaker : 2700Kg

Motor Power : 1.1kW, 220v, 50Hz

Max Tyre Width : 15"

Outside Clamping : 12"-22"

Inside Clamping : 10"-20"

Machine Weight : 200Kg

Inflation Gun and Guage

Technical Features

Swing horizontal arm with 36 mm hexagon shaft.

Mechanical locking and vertical adjustment of mounting arm.

Tools head with interchangeable plastic inserts for rim protection.

Self-centering four-jaws with double pneumatic cylinder for secure

clamping of all rim types.

Powerful clamping cylinders provide uniform clamping pressure.

Clockwise and Anticlockwise rotation of the turn table through electric

motor.

The pedal assembly can be removed allowing easy servicing.

Inflation gun with pressure gauge and pressure release button

Protection kit for bead breaker shoe, de-mounting head and clamping

jaw comes standard.

Complete with lubrication filter and pressure regulator.
