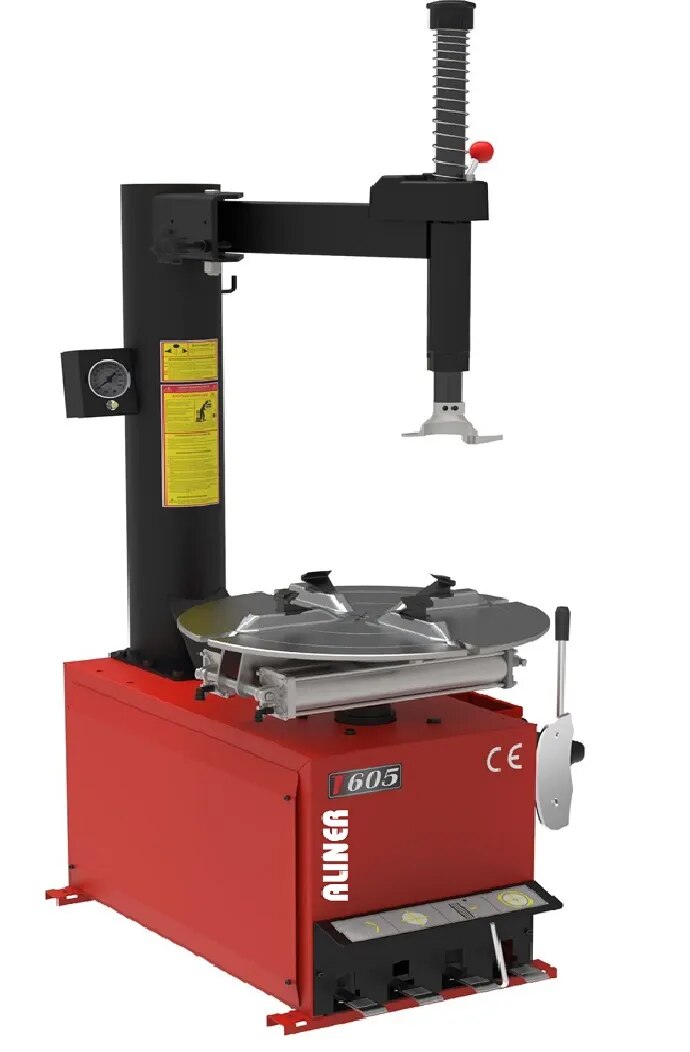

TYRE CHANGER ( 10" to 22" ) With Pressing Tool
Description
Technical Specification
Outer Clamping Size 12”-24”
Inner Clamping Size 10”-22”
Max. Wheel Dia. 1040mm
Max. Wheel Width 3”~15”
Beadbreaking Force 2700 KG
Operating Pressure 8-10 BAR
Power Supply 220V/50HZ/1PH
Motor Power 1.1 KW
Technical Features
Swing horizontal arm with 041 mm hexagon shaft.
Cylindrical vertical tower featuring high torsional rigidity.
Mechanical locking and vertical adjustment of mounting arm.
Tools head with interchangeable plastic inserts for rim protection.
Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
Powerful clamping cylinders provide uniform clamping pressure.
Clockwise and anticlockwise rotation of the turntable through electric motor.
The pedal assembly can be removed allowing easy servicing.
Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button.
Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.
Complete with lubrication filter and pressure regulator.
